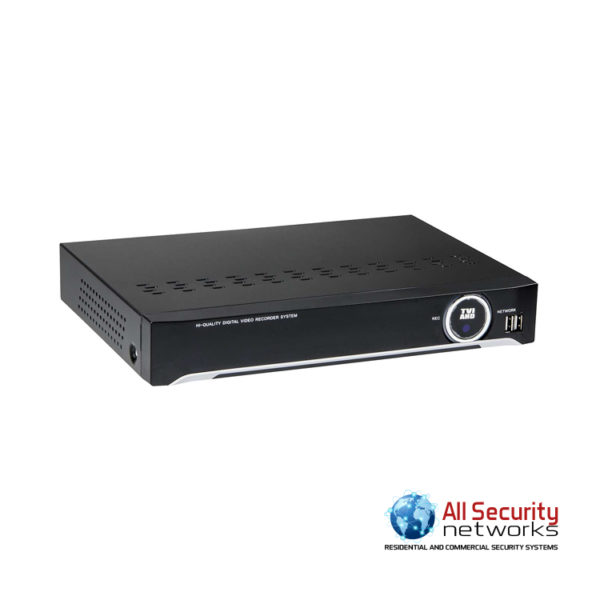

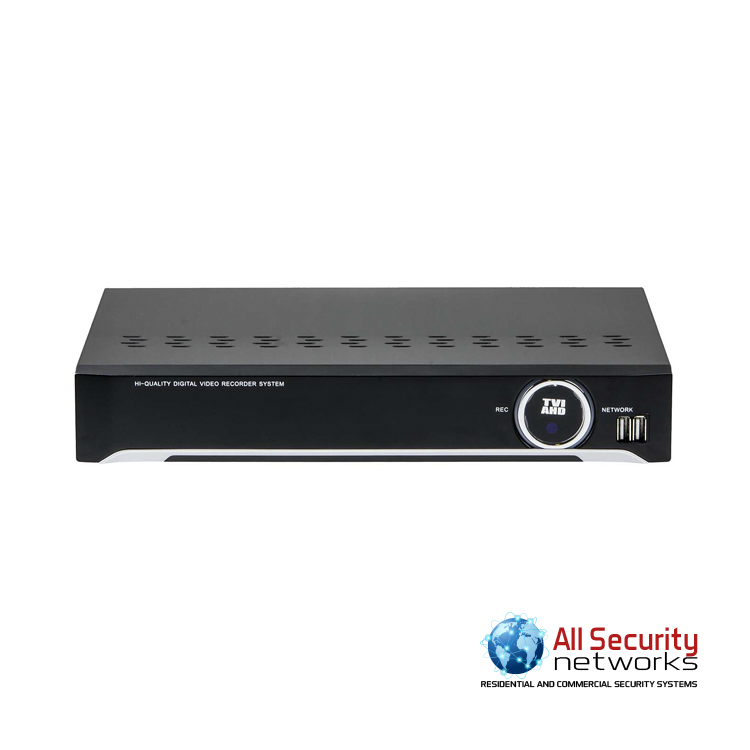

8CH 1080p HD-TVI Security PVT Series DVR System – Auto Detects HD-TVI/AHD 2.0/960H/Analog

PVT Series DVR accepts Analog / 960H / HD-TVI / AHD 2.0 camera

REAL-TIME Live • 120fps@1080p Recording • H.264 • iPhone® Android® App Available (Mr.Patrol) • Dual Streaming • Mac CMS application • POS Interface ready • RS-485 for PTZ control • Free DDNS Supportwdss

SKU: TVST-PVT-08 Categories: ,
Brand:

$ 399.00

Quantity
Compare

Description

FEATURES

  • Full GUI with alpha blending
  • Individual setting of resolution, frame rates and picture quality
  • Instant Replay
  • Digital Zoom
  • Mouse Control
  • Weekly scheduler with holiday by 10 minutes setting
  • Covert, Disable and Private function of cameras
  • Motion Detection with 576 area setting
  • Relay alarm output
  • PTZ control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi User Authority up to 8 Users
  • Deinterlacer upon live and playback
  • 22 languages with full graphic
  • Individual Network port setting
  • Auto Deletion
  • Import and Export the configuration
  • Interactive setup via network
  • POS Interface
  • Dual CODEC engine for independent video transmission

SPECIFICATIONS

TVST PVT-08
Video
Camera Input 8 BNC
Individual HD/Analog Selectable All Hybrid
Output 1 HDMI (Main Display) / 1 VGA (Main Display)
Audio
Audio Input 8 RCA
Audio Ouput 1 RCA
Sensor In 4 (NC, NO Selectable)
Alarm Out 1 Relay
Operating System Embedded Linux OS
Display
Speed Real-Time
Resolution (Pixel) 1280X1024, 1280X720, 1920X1080
Split Screen 1, 4, 6, 8, 9
Main Recording
CODEC H.264
Resolution (Pixel) 1080p (1080p25,30)720p (720p25,30)

960H, D1 (Composite, 960H)

Picture Quality 4 steps (Super, High, Medium, Low)
Speed NTSC Area: 240fps@720p/120fps@1080pPAL Area: 200fps@720p/100fps@1080p
Dual Recording
CODEC H.264
Resolution (Pixel) N/A
Playback
Display 1, 4, 6, 8, 9
Search Mode Calendar, Event, POS, Panorama, Thumbnail
Speed NTSC Area: 60fps@1080pPAL Area: 50fps@1080p
Fast/Slow Speed Normal, REW & FF [Recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network
Network Interface Megabit Ethernet
Low Resolution (Pixel) 480×256 (1080p25,30)480×256 (720p25,30)

CIF (Composite, 960H)

Speed NTSC Area: 40fps@720pPAL Area: 40fps@720p
Protocol TCP/IP, HTTP, DHCP
Application Windows 7 / 8 (PC Client system & IE)/ MAC
Web Browser Internet Explorer, Safari, Chrome, Firefox
Smart Phone App Android, iPhone for Live & Search
Backup
Interface USB 2.0 × 2
Backup Device External HDD, CD & DVD-RW, Network, Thumb Drive
The Number of HDD 1 × SATA
Others
Power Consumption 24W
Operating Temperature 5~40°C (41~104F)
Relative Humidity Maximum 80% non-condensing
