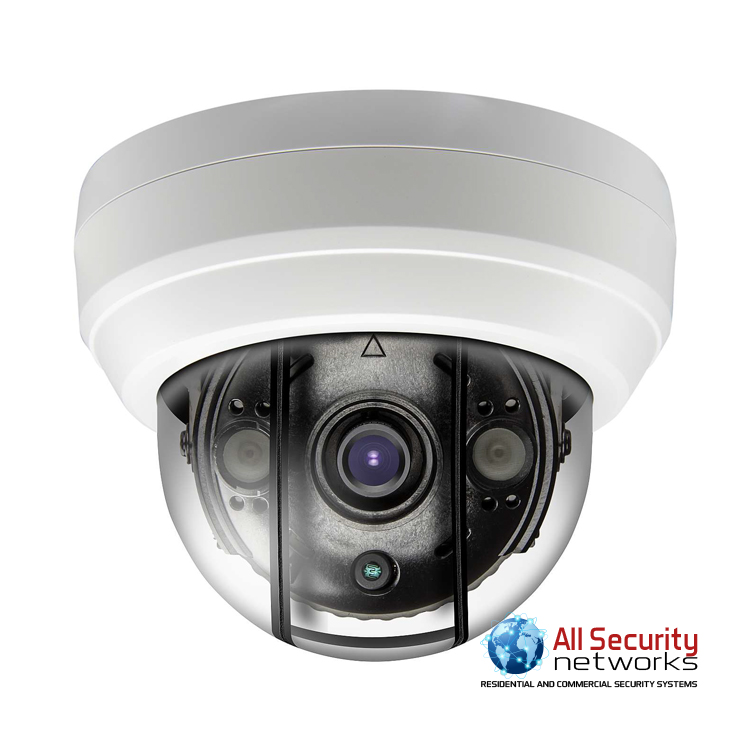

Anti-IR Reflection | 1080P HD-TVI SUPERDOME® IR Indoor Dome Camera with Fixed Lens, M-Size, DC 12V
1/2.9 inch SONY CMOS (IMX-222) • Resolution (1080P, 720P, 720P CROP) • TVI (Transport Video Interface) • 0 Lux at IR On (Hi Power LED 02 pcs) • OSD Controlled • Smart IR • DNR (Digital Noise Reduction) • True Day & Night (ICR) • Option (RS-485) • Easy Installation • Fixed Lens 4.3mm
$ 119.00
Description
SPECIFICATIONS
| RESOLUTION | 1080P, 720P, 720P CROP |
| SENSOR | 1/2.9 inch SONY CMOS (IMX-222) |
| TOTAL PIXELS | 2000(H) x 1241(V) = 2,482,000 |
| EFFECTIVE PIXELS | 1944(H) X 1092(V) = 2,122,648 |
| SCANNING SYSTEM | PROGRESSIVE |
| S/N (Y SIGNAL) | More than 52 dB (AGC Off) |
| VIDEO OUTPUT | TVI / (CVBS: 1.0Vp-p (75ohm) : Option) |
| MIN.ILLUMINATION | 0 Lux at IR On |
| WHITE BALANCE | AUTO / AUTO EXT / PRESET / MANUAL |
| SHUTTER | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| BRIGHTNESS | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8 |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLM |
| ACE | OFF / LOW / MIDDLE / HIGH |
| DAY & NIGHT | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN, MDIR (SEARCH Option) |
| PRIVACY | OFF / ON (16 Zone) |
| MOTION | OFF / SET |
| D.ZOOM | 0 ~ 127 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| LANGUAGE | ENG, CHN, CHN(S), JPN, KOR |
| SHARPNESS | ADJUSTABLE (0 ~ 10 STEP) |
| DEFOG | OFF / SET |
| COMM | RS-485 (PELCO-D) |
| SMART IR (IR PRODUCT SPEC.) | ADJUSTABLE (0 ~ 20 STEP) |
| OPERATING TEMPERATURE / HUMIDITY | 14°F ~ 120°F(−10°C ~ 50°C) / 30%~80% RH |
| STORAGE TEMPERATURE / HUMIDITY | −4°F ~ 140°F(−20°C ~ 60°C) / 20%~90% RH |
| POWER | DC12V Only |
| SIGNAL TRANSMISSION | The distant difference is occurred according to cable option and other circumstances. (coaxial cable 300M) |
