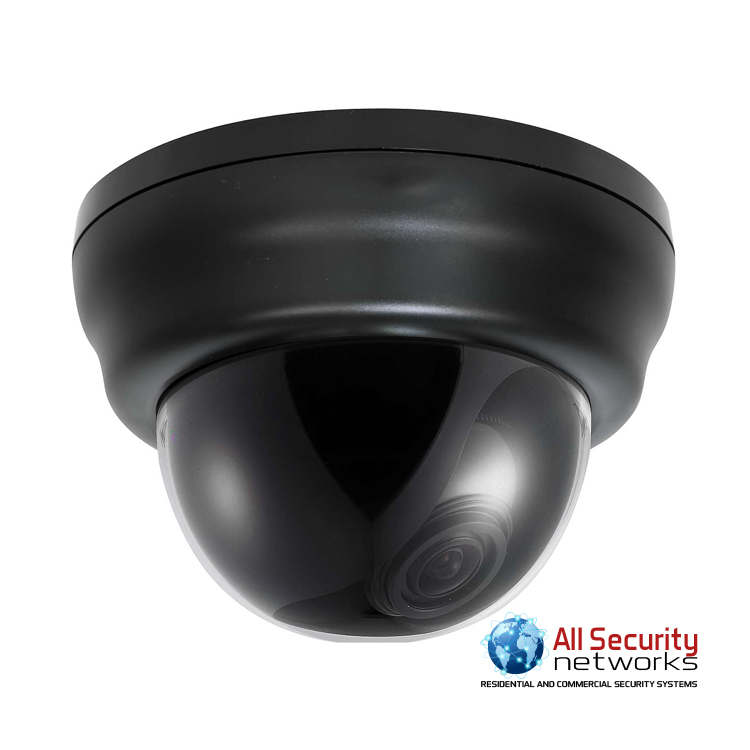

EX-SDI : 1080p Non-IR Indoor Large Dome with Vari-focal Lens
• 1/2.9 inch SONY CMOS (IMX-222 • IMX-322) • HD-SDI (1080P • 720P • 720P CROP) • Extended Serial Digital Interface • 1 Lux at F1.2 • 0.1 Lux (B/W) • OSD Controlled • DNR (Digital Noise Reduction) • Smart IR • WDR (Wide Dynamic Range) Day & Night (ICR Option) • D.ZOOM • Privacy • Image Conversion • Easy Installation • DC Auto IRIS V/F Lens 2.8~12mm • DC Auto IRIS & TDN V/F Lens 2.8~12mm
$ 169.00
Description
SPECIFICATIONS
| Resolution | 1080P, 720P, 720P CROP |
| Sensor | 1/2.9 inch SONY CMOS (IMX-222 / IM × 322) |
| Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
| Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE274M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) |
| Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| shutter | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / × 2 / × 4 / × 8 / × 16 / × 32 |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| ACE | OFF / LOW / MIDDLE / HIGH |
| Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN, |
| Privacy | OFF / ON |
| Motion | OFF / SET |
| D.ZOOM | x1.0 ~ × 16.0 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| DEFOG | OFF / SET |
| COMM | RS-485 (PELCO-D) |
| SMART IR (IR product SPEC.) | ADJUSTABLE (0 ~ 20 STEP) |
| Operating Temperature / Humidity | 14°F ~ 122°F(−10°C ~ 50°C) / 30% ~ 80% RH |
| Storage Temperature / Humidity | −4°F ~ 140°F(−20°C ~ 60°C) / 20% ~ 90% RH |
| Power | DC12V |
| signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M-656ft) / EX-SDI (400M-1312ft)) |
