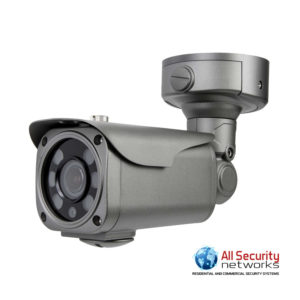

EX-SDI 1080p(2MP) IR Bullet Camera w/ 8 COB IR & 2.8~12mm Lens
EX-SDI1080pIP68 OutdoorDC 12V1/2.9″ Sony CMOS • 2.8~12mm Auto-Iris Vari-Focal Lens • 8 COB IR LEDs • True Day & Night(ICR) • DNR (Digital Noise Reduction) • AWB (Auto White Balance) • SENS-UP • EX-SDI • HD-SDI selectable • Balun compatible • Made in Korea
$ 259.00
Description

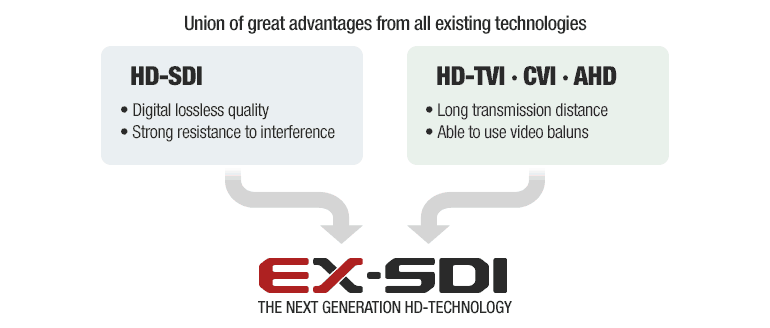

What is EX-SDI?
The Secrets

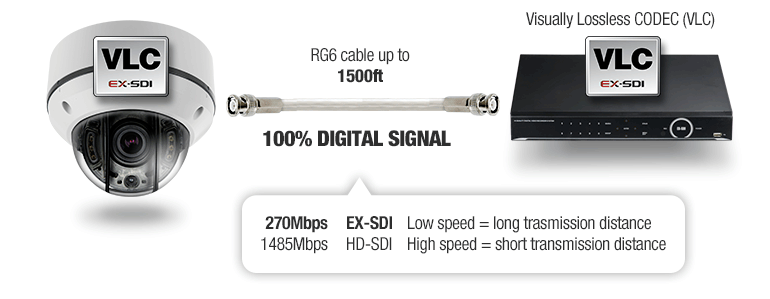

EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.
Ready for 4K
EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in realtime FPS over coaxial cable.
Backward Compatibility
EX-SDI Magic series will work with any HD-SDI cameras. Just like the Magic series once were compatible with their predecessors’ technologies

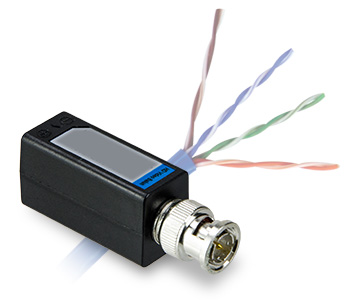

Video Balun compatible
UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)
FEATURES
- 2.8 ~ 12mm Auto-Iris Vari-Focal Lens
- 1/2.9″ Sony CMOS
- 0 Lux at IR On (8 pcs of COB IR LED)
- Upgraded Waterproof Housing (IP68 Rating)
- Smart IR / DNR (Digital Noise Reduction) / True Day & Night (ICR)
- RS-485 Option
- Easy Installation
- DC 12V
SPECIFICATIONS
| Resolution | 1080p, 720p, 720p CROP |
| Sensor | 1/2.9 inch SONY CMOS (IMX-222 / IM × 322) |
| Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
| Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
| Scanning System | Progressive |
| S/N (Y Signal) | More then 52 dB (AGC Off) |
| Video Output | SMPTE274M (HD-SDI) / CVBS: 1.0Vp-p (75ohm) |
| Min. Illumination | IR Product: 0 Lux at IR On |
| White Balance | Auto / Auto Ext / Preset / Manual |
| Shutter | Auto / Manual (1/30sec ~ 1/60,000sec) |
| Brightness | Adjustable (0 ~ 20 Step) |
| Sens Up | OFF / × 2 / × 4 / × 8 / × 16 / × 32 |
| DNR | OFF / Low / Middle / High |
| Backlight | OFF / WDR / BLC / HLM |
| ACE | OFF / Low / Middle / High |
| Day & Night | Auto (Day <–> Night Time Change), Color, B/W, Extern |
| Privacy | OFF / ON |
| Motion | OFF / SET |
| Digital Zoom | ×1 ~ × 16 |
| Flip | OFF / ON |
| Freeze | OFF / ON |
| Language | English, Chinese, Chinese(S), Japanese, Korean |
| Sharpness | Adjustable (0 ~ 10 Step) |
| Defog | OFF / SET |
| Communication Port | RS-485 (Pelco-D) |
| Smart IR | Adjustable (0 ~ 20 Step) |
| Operating Temp / Humidity | −10°C ~ +50°C(14°F ~ 122°F) / 30% ~ 80% RH |
| Storage Temp / Humidity | −20°C ~ +60°C(−4°F ~ 140°F) / 20% ~ 90% RH |
| Power | DC 12V |
| Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M)) |

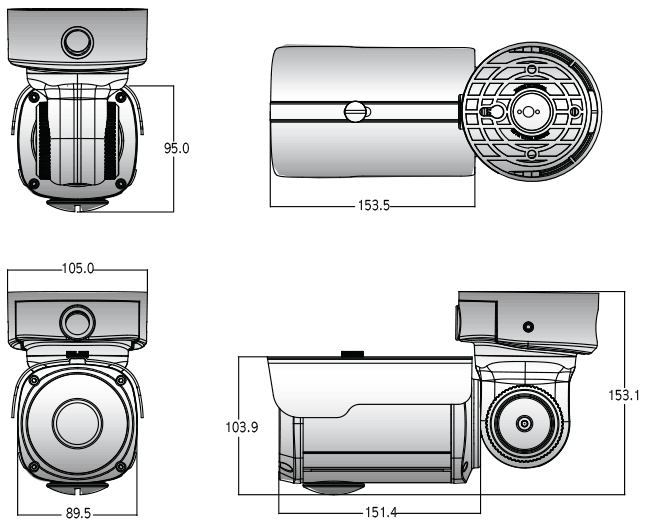

DIMENSIONS
unit : mm
Additional information
| Dimensions | 261.4 × 89 × 153.1 mm |
|---|
