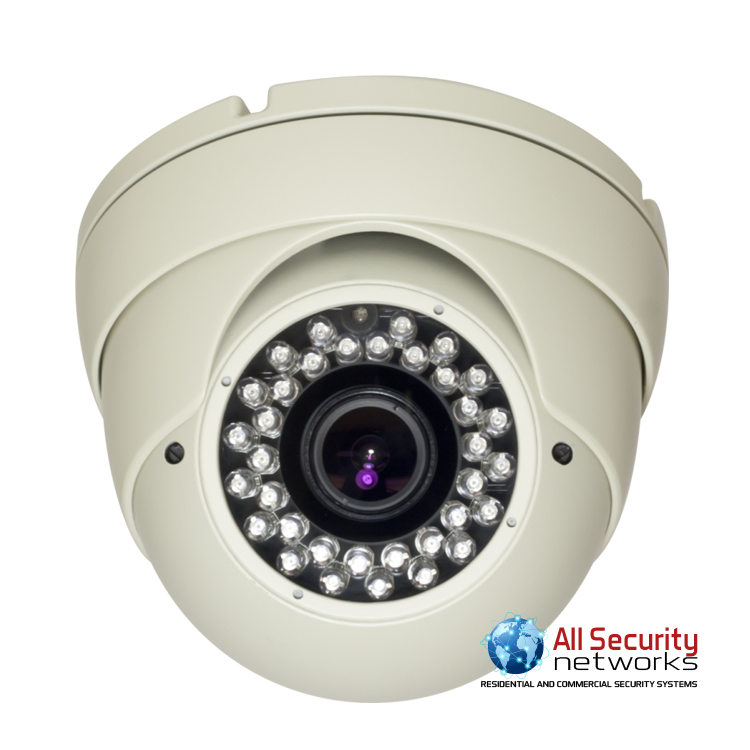

EYEBALL 700TVL(960H) IR Metal Dome Camera w/ VF Lens & Dual Power
1/3 INCH SONY SUPER HAD CCD II • High Resolution • High Sensitivity • 0 Lux at IR On (IR LED : Varifocal 35 pcs) • Upgraded Weatherproof Housing • OSD Controlled • ATR (Adaptive Tone-curve Reproduction) • 2DNR (2D Digital Noise Reduction) True Day & Night (ICR) Function • IR SMART mode • Motion Detection • Privacy • Easy Installation • DC Auto IRIS & TDN V/F Lens 2.8~12mm • DC Auto IRIS V/F Lens 2.8~12mm • Manual V/F Lens 2.8~12mm
$ 129.00
Description
SPECIFICATIONS
| SPECIFICATION | Default Option | |
| Resolution | 650 TV Line | |
| Sensor | 1/3 INCH SONY SUPER HAD CCD II | |
| Total Pixels | 1020(H) × 508(V) 520K pixels (NTSC) / 1020(H) × 596(V) 610K pixels | |
| Effective Pixels | 976(H) × 494(V) 480K pixels (NTSC) / 7976(H) × 582(V) 570K pixels (PAL) | |
| Scanning System | 2:1 Interlace | |
| S/N (Y signal) | More than 52 dB (AGC Off) | |
| Frequency | Horizontal : (15.734KHz / Vertical : 59.94Hz NTSC), (15.625KHz / Vertical : 50.00Hz PAL) | |
| Video Output | CVBS: 1.0Vp-p / 75ohm | |
| Min.Illumination | 0 Lux at IR On | |
| Electronic shutter speed | AUTO/MANUAL (1/60sec ~ 1/100,000sec NTSC), (1/50sec ~ 1/100,000sec PAL) | AUTO |
| White Balance | ATW / PUSH / USER1 / UESR2 / ANTI CR / MANUAL / PUSH-LOCK | ATW |
| Backlight Compensation | OFF / BLC / HLC Selectable | OFF |
| ATR | ON / OFF (LEVEL ADJUSTABLE) | OFF |
| 2DNR | ON / OFF (LEVEL ADJUSTABLE) | OFF |
| Day & Night | Auto (Day <–> Night TIME Change) COLOR , B/W, EXT1, EXT2 | AUTO |
| Privacy | OFF / ON (8 Zone) [ Motion on : 4 Zone ] | OFF |
| Motion Detection | OFF / ON ( 4 Zone) | OFF |
| Image Conversion | OFF / ON | OFF |
| Language | ENGLISH, JAPANESS, GERMAN, FRENCH, RUSSIAN, PROTUGUESE, SPANISH | ENGLISH |
| Operating Temperature/Humidity | 14°F ~ 122°F(−10°C ~ 50°C)/ 30% ~ 80% RH | |
| Storage Temperature/Humidity | −4°F ~ 140°F(−20°C ~ 60°C) / 20% ~ 90% RH | |
| Power | DC12V Only / DC12V AC24V DualPower (option) | |
