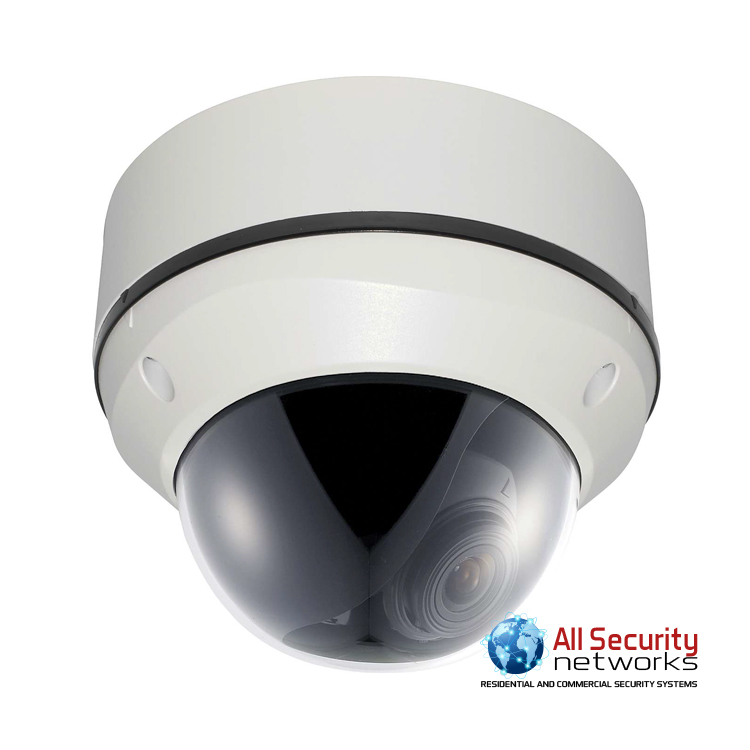

Eyemax | EX-SDI 1080P (2MP) STORM® Outdoor Vandal-resistant IP68 Dome Camera /w Auto-Iris VF Lens, DC 12V
1/2.9 inch SONY CMOS (IMX-322 or IMX-222)
Extended Serial Digital Interface / 1 Lux at F1.2 / 0.1 Lux (B/W)
Upgraded Waterproof Housing (IP 68 rating) / DNR (Digital Noise Reduction)
WDR (Wide Dynamic Range) / Day & Night (ICR Option) / Easy Installation
ICR V/F lens, DC Auto IRIS V/F Lens, DC Auto IRIS & TDN V/F Lens
(Focal Length : 2.8~12mm, 3.5~16mm) / Fixed Lens 4mm, 4.3mm, 6mm
$ 189.00
Description
SPECIFICATIONS
| Resolution | 1080P, 720P, |
| Sensor | 1/2.9 inch SONY CMOS (IMX-136) |
| Total Pixels | 1952(H) x 1112(V) = 2,178,432 |
| Effective Pixels | 1944(H) X 1104(V) = 2,146,176 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) |
| Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| SENS_UP | OFF / X2 ~ x32 |
| DNR / ACE | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN |
| PRIVACY / FLIP / FREEZE | OFF / ON |
| MOTION / DEFOG | OFF / SET |
| D.ZOOM | x1.0 ~ x16.0 |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness / Brightness | ADJUSTABLE (Sharpness : 0 ~ 10 STEP / Brightness : 0 ~ 20 STEP ) |
| COMM. | RS-485(PELCO-D) |
| Temperature/Humidity | Operating (14℉ ~ 120℉(-10°C ~ 50°C) / 30%~80% RH) / Storage (-4℉ ~ 140℉(-20°C ~ 60°C) / 20%~90% RH) |
| Power | DC12V [ AC24V / DC12V Dua lPower (option) ] |
| signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : EX-SDI (500M)) |
