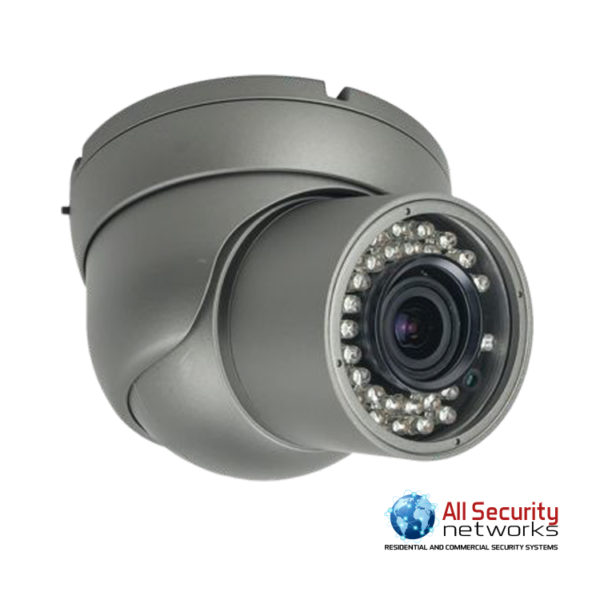

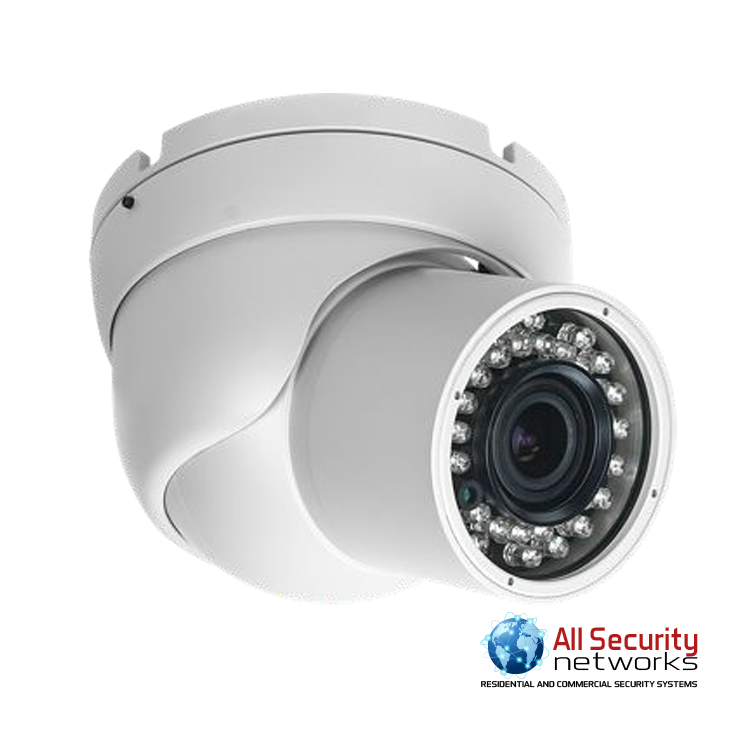

Eyemax | EX-SDI 1080P EYEBALL IR Dome Camera with Vari-focal Lens
1/3″ Sony CMOS • 2.8~12mm Mega-Pixel Vari-focal Lens • 35 IR LED • True Day & Night (ICR) • DNR (Digital Noise Reduction) • EX-SDI • HD-SDI selectable • Balun compatible • Made in Korea
$ 159.00
Description
What is EX-SDI?
The Secrets
EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.
Ready for 4K
EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in realtime FPS over coaxial cable.
Backward Compatibility
EX-SDI Magic series will work with any HD-SDI cameras. Just like the Magic series once were compatible with their predecessors’ technologies
Video Balun compatible
UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)
FEATURES
- 2.8 ~ 12mm Mega-pixel Vari-focal Lens
- 1080p FULL HD Flawless Video
- 1/2.9″ Sony CMOS
- 0 Lux at IR On (IR : 35pcs)
- DNR (Digital Noise Reduction) / True Day & Night (ICR)
- Digital Wide Dynamic Range (D-WDR)
- Easy Installation
- switchable EX-SDI / HD-SDI output
- DC 12V
SPECIFICATIONS
| Resolution | 1080P / 720P |
| Sensor | 1/2.9 inch SONY CMOS (IMX-222 / IM × 322) |
| Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
| Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
| Scanning System | Progressive |
| S/N (Y Signal) | More then 52 dB (AGC Off) |
| Video Output | EX-SDI output switch on HD-SDI Output |
| Min. Illumination | IR Product: 0 Lux at IR On |
| White Balance | Auto / Auto Ext / Preset / Manual |
| Shutter | Auto / Manual (1/30sec ~ 1/30,000sec) / Flicker |
| Brightness | Adjustable (0 ~ 20 Steps) |
| Sens-up | Off / × 2 ~ × 32 |
| DNR | OFF / Low / Middle / High |
| Backlight | Off / WDR / BLC / HLC |
| Ace | Off / Low / Middle / High |
| Day & Night | Auto (Day<–>Night TIME Change), COLOR, B/W, EXTERN |
| Privacy | OFF / ON |
| Motion | OFF / ON |
| Flip | OFF / ON |
| Defog | OFF / ON |
| Language | ENG / CHN / CHN(S) / JPN / KOR |
| Sharpness | Adjustable (0 ~ 10 Steps) |
| Operating Temp / Humidity | -10°C ~ +50°C(14°F ~ 122°F) / 30% ~ 80% RH |
| Storage Temp / Humidity | -20°C ~ +60°C(−4°F ~ 140°F) / 20% ~ 90% RH |
| Power | DC 12V |
| Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200m) / EX-SDI (500m)) |
DIMENSIONS
Additional information
| Dimensions | 69.2 × 69.2 × 132 mm |
|---|---|
| Color | Black, White |
