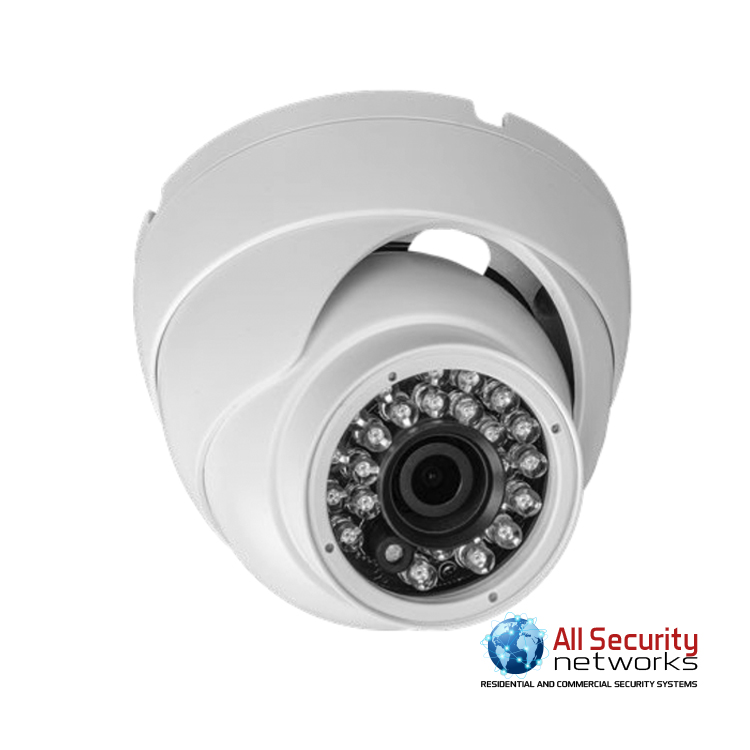

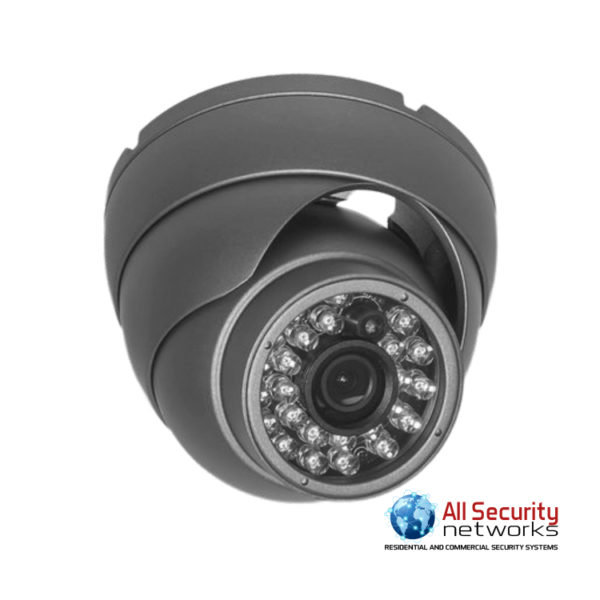

Eyemax | EX-SDI / HD-SDI 1080P EYEBALL IR Dome Camera with Fixed Lens

1/3″ Sony CMOS • 2.8mm Mega-Pixel Fixed Lens • 25 IR LED • True Day & Night (ICR) • DNR (Digital Noise Reduction) • EX-SDI • HD-SDI selectable • Balun compatible

SKU: UIB-2022 Categories: , Tag:
Brand:

$ 99.00

Black
White
Clear
Compare

Description

What is EX-SDI?

The Secrets

EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.

Ready for 4K

EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in realtime FPS over coaxial cable.

Backward Compatibility

EX-SDI Magic series will work with any HD-SDI cameras. Just like the Magic series once were compatible with their predecessors’ technologies

Video Balun compatible

UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)

FEATURES

  • 2.8mm Fixed Lens
  • 1080p FULL HD Flawless Video
  • 1/2.9″ Sony CMOS
  • 0 Lux at IR On (IR : 25pcs)
  • DNR (Digital Noise Reduction) / True Day & Night (ICR)
  • Easy Installation
  • DC 12V

SPECIFICATIONS

Resolution 1080P
Sensor 1/2.9 inch SONY CMOS (IMX-222 / IM × 322)
Total Pixels 2000(H) × 1241(V) = 2,482,000
Effective Pixels 1944(H) × 1092(V) = 2,122,648
Scanning System Progressive
S/N (Y Signal) More then 52 dB (AGC Off)
Video Output SMPTE274M (HD-SDI)
Min. Illumination IR Product: 0 Lux at IR On
White Balance Auto
Shutter Auto (1/30sec ~ 1/60,000sec)
AGC ON
DNR ON
Day & Night ON
Operating Temp / Humidity  -10°C ~ +50°C(14°F ~ 122°F) / 30% ~ 80% RH
Storage Temp / Humidity  -20°C ~ +60°C(−4°F ~ 140°F) / 20% ~ 90% RH
Power DC 12V
Signal Transmission The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M))

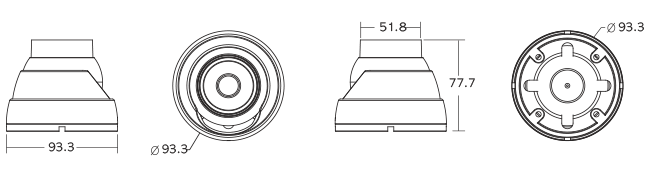

DIMENSIONS

unit : mm

Additional information

Dimensions 93.3 × 93.3 × 77.7 mm
Color

Black, White
