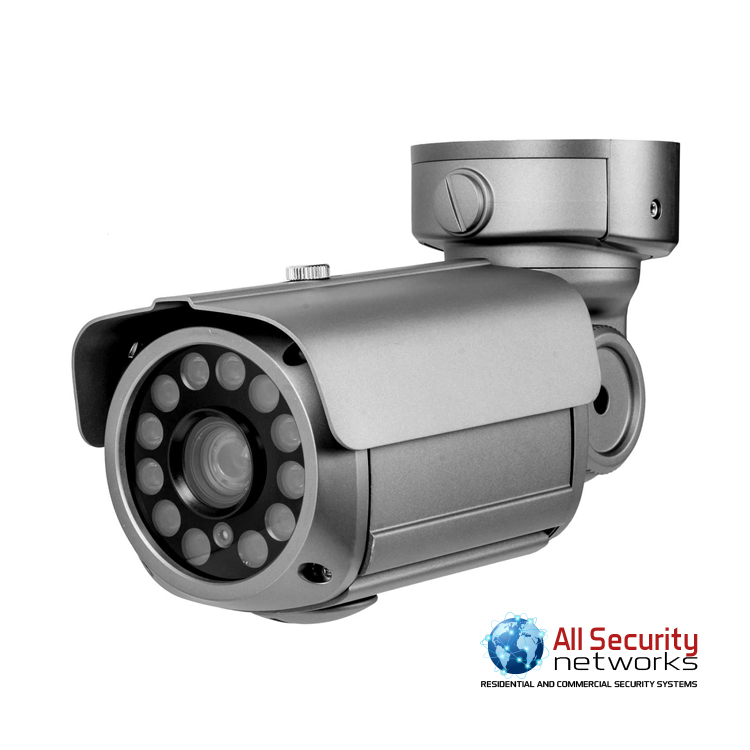

Eyemax | HD-TVI 1080P (2MP) IP68 Outdoor IR Bullet Camera with 12 COB IR, Vari-focal Lens, DC 12V

TVI (Transport Video Interface) • 1/2.9″ Sony CMOS • 6~50mm Auto-Iris Vari-Focal Lens • 12 COB IR LEDs • True Day & Night(ICR) • DNR (Digital Noise Reduction) • AWB (Auto White Balance) • SENS-UP

SKU: TIR-2362FV-B Categories: ,
Brand:

$ 399.00

Quantity
Compare

Description

FEATURES

  • HD-TVI – High Definition Transport Video Interface 1080p FULL HD Flawless Video
  • 1/2.9″ Sony CMOS
  • 6 ~ 50mm Auto-Iris Vari-Focal Lens
  • 0 Lux at IR On (12 pcs of COB IR LED)
  • Upgraded Waterproof Housing (IP68 Rating)
  • Smart IR / DNR (Digital Noise Reduction) / True Day & Night (ICR)
  • RS-485 Option
  • Easy Installation
  • DC 12V



SPECIFICATIONS

Resolution 1080p, 720p, 720p CROP
Sensor 1/2.9 inch Sony CMOS
Total Pixels 2000(H) × 1241(V) = 2,482,000
Effective Pixels 1944(H) × 1092(V) = 2,122,648
Scanning System Progressive
S/N (Y Signal) More then 52 dB (AGC Off)
Video Output TVI / CVBS: 1.0Vp-p (75ohm)
Min. Illumination IR Product: 0 Lux at IR On
General Product: 1 Lux at F1.2/0.1 Lux (B/W)
White Balance Auto / Auto Ext / Preset / Manual
Shutter Auto / Manual (1/30sec ~ 1/60,000sec)
Brightness Adjustable (0 ~ 20 Step)
Sens Up OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8
DNR OFF / Low / Middle / High
Backlight OFF / WDR / BLC / HLM
ACE OFF / Low / Middle / High
Day & Night Auto (Day <–> Night Time Change), Color, B/W, Extern, MDIR (Search Option)
Privacy OFF / ON (16 Zone)
Motion OFF / SET
Digital Zoom 0 ~ 127
Flip OFF / ON
Freeze OFF / ON
Language English, Chinese, Chinese(S), Japanese, Korean
Sharpness Adjustable (0 ~ 10 Step)
Defog OFF / SET
Communication Port RS-485 (Pelco-D)
Smart IR Adjustable (0 ~ 20 Step)
Operating Temp / Humidity −10°C ~ +50°C(14°F ~ 122°F) / 30% ~ 80% RH
Storage Temp / Humidity −20°C ~ +60°C( ~ 4°F ~ 140°F) / 20% ~ 90% RH
Power DC 12V
Signal Transmission The distant difference is occurred according to cable option and other circumstances. (Coaxial Cable 300M)

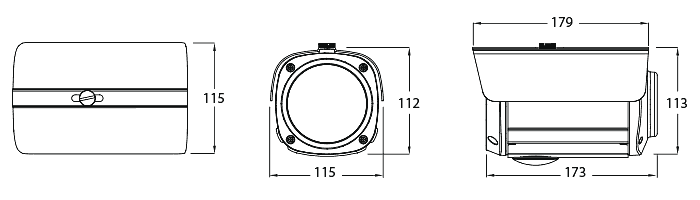

DIMENSIONS

Additional information

Dimensions 173 × 115 × 112 mm
