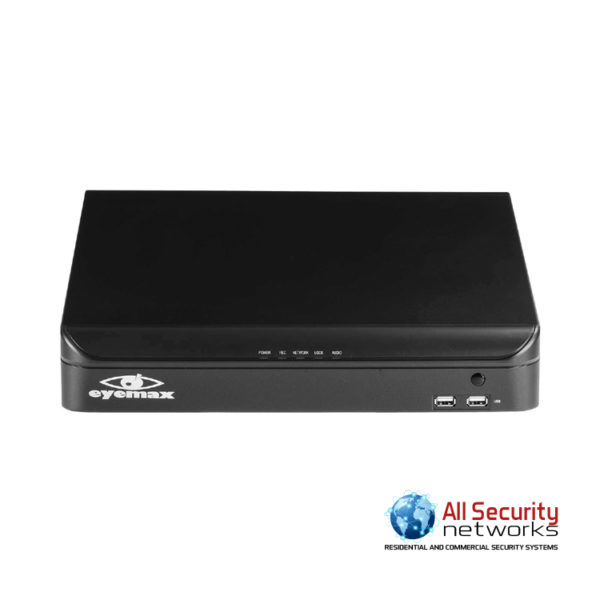

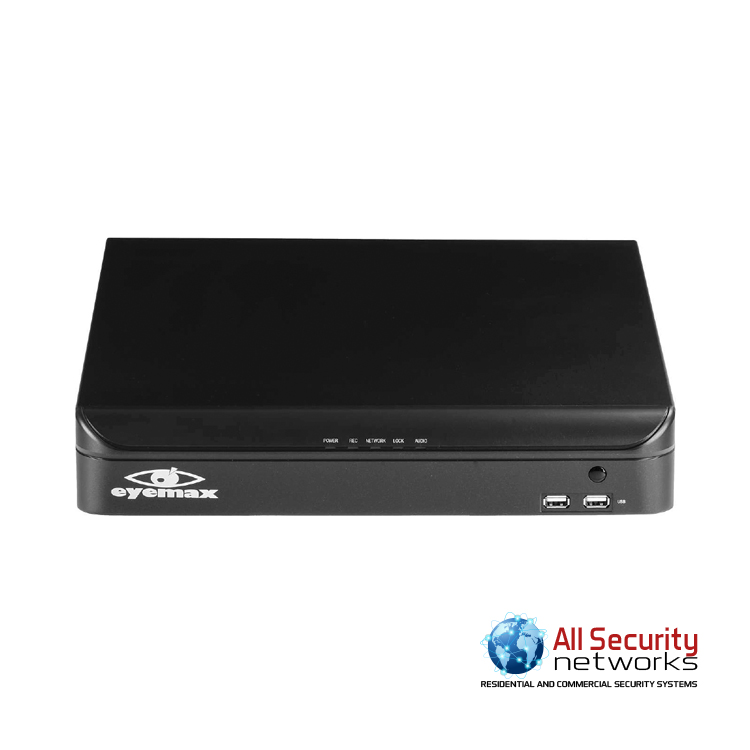

KS Series – 8CH Octa-brid DVR System
Supports EX-SDI • HD-SDI • IP Camera • TVI • CVI • A-HD • 960H • Analog • Real-time Display & Recording • iPhone Android App Available (T DVR VIEWER) • POS Interface ready • Free DDNS Support • 2 SATA ( up to 12TB; 6TB EA. ) • Please use the link HERE to add HDD to cart.
$ 599.00
Description
What is EX-SDI?
The Secrets
EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.
Ready for 4K
EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in realtime FPS over coaxial cable.
Backward Compatibility
EX-SDI Magic series will work with any HD-SDI cameras. Just like the Magic series once were compatible with their predecessors’ technologies
Video Balun compatible
UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)
FEATURES
- Customizable logo displays on the screen
- Setup Wizard (Easy to setup)
- ANS(auto Network Setting)
- POS/ATM
- Network Dual Streamming
- Keyboard Controller Support
SPECIFICATIONS
| Type | EX-SDI Standalone DVR |
| Codec | H.264 (Main Profile/High Profile) |
| Recording Performance | 160 FPS @ 1920 × 1080P |
| Playback Performance | 160 FPS @ 1920 × 1080p |
| Hardware | |
| Video Input Format | EX-SDI 2.0 / HD-SDI / Analog HDs / 960H / SD |
| Video Input | 8CH |
| Video Output | 1 HDMI (Max. 1920 × 1080P), 1 VGA, 1 Composite |
| Audio Input | 4 Inputs (RCA) |
| Audio Output | 1 Output (RCA) |
| Audio Codec | ADPCM |
| Ethernet | 1 Port (10 / 100 Mbps / 1 Gbps Ethernet (RJ-45)) |
| PTZ port | 1 Port (RS-485 Terminal Block) |
| POS/ATM | 4 Port ( usb to serial) |
| Alarm Input / Output | 4 (NC/NO) / 1 (Relay) |
| USB Port | 4 Ports (2 Rear / 2 Front) |
| Storage | Up to 2 SATA HDD |
| Software | |
| Wizard Support | Wizard for Easy Setup |
| ANS support | Auto Network Setup Support |
| Recording Scheduling | Fully Programmable (by Weekday / by Hour / by Camera / by Continous+ Event + PreEvent) |
| Network | Dual Stream ( User Selectable ) |
| Recording Quality Level | Best / High / Moderate / Economic |
| Scheduling Mode | Continuous / Alarm / Motion / Panic ( Fully Programmable) |
| Pre-Event | Up to 30 Minites |
| Motion Detection | Region Selection (Mouse dragging support) |
| Playback Speed | ×1, × 2, × 4, × 8, × 16, × 32, × 64, × 128 |
| Backup Format | EXE(Self Executable Format), JPEG |
| Backup Devices | USB |
| GUI | User Friendly Interface |
| Time Zone | Yes |
| NTP | Yes |
| DDNS | Bulit-in ddns / dyndns / no-ip / zoneedit / freedns |
| Day Light Saving | Yes |
| Panic Recording | Yes |
| Multi Language | 33 languages |
| CMS | Full Featured Enterprise Edition for Windows / Mac / Linux |
| Mobile Viewer | iPhone / Android / iPad |
| Operating System | Embedded Linux |
| Dimensions(WxHxD) | 340(mm) × 60(mm) × 361(mm) / 13.38inch × 2.36inch × 14.21inch |
| Operating Temperature & Humidity | 5°C ~ 40°C / 41°F ~ 104°F, 0% ~ 90% |
| Power | Adaptor |
| Power consumption | MAX 30W |
