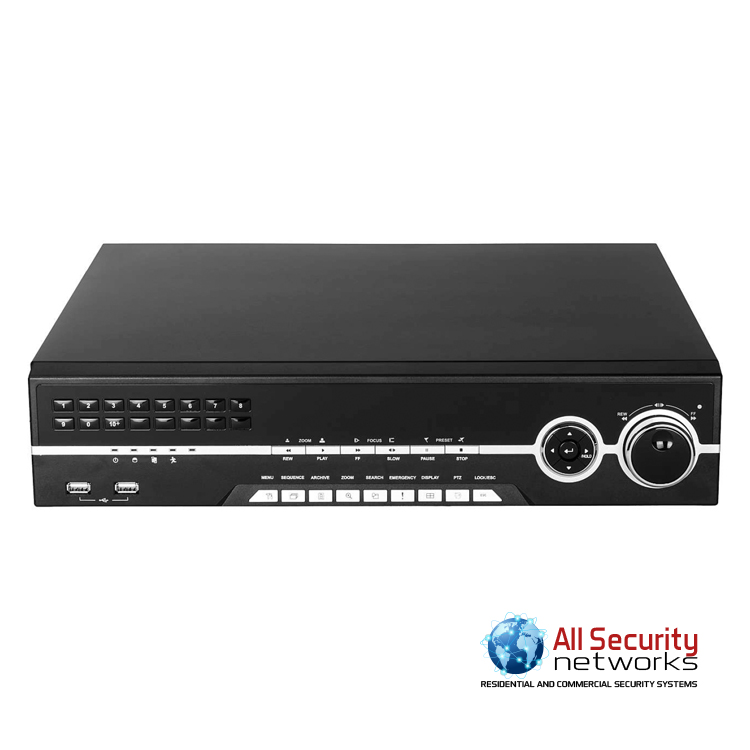

NVR / 32CH up to 8MP(4K)@30 / ONVIF / 120Mbps / 8 SATA + 1eSATA / 4K output
• Full GUI with alpha blending • Individual setting of resolution • frame rates and picture quality • Instant Replay • Digital Zoom • Mouse Control • Weekly scheduler with holiday by 10 minutes setting • Covert • Disable and Private function of cameras • Motion Detection with 576 area setting • Relay alarm output • PTZ control by RS-485 • Daylight Saving Time and Network Time Setting • Multi User Authority up to 8 Users • De-interlacer upon live and playback • 22 languages with full graphic • Individual Network port setting • Auto Deletion • Import and Export the configuration • Interactive setup via network • POS Interface • Dual CODEC engine for independent video transmission • Mirroring • HD spot •
$ 1,799.99
Description
SPECIFICATIONS
| Video | |
| Camera input | 1 RJ45 |
| IP Camera Spec | ONVIF 2.3, RTSP, H.264, dual stream |
| IP Camera Num | 32 |
| Output | 1 HDMI (Main Display) 1 VGA (Main Display) |
| Audio | |
| Audio input | 1 RCA |
| Output | 1 RCA |
| Sensor In | 4 (NC, NO selectable) |
| Alarm out | 1 relay |
| Operating System | Embedded Linux OS |
| Display | |
| Speed | Real Time |
| Resolution (Pixel) | 1280 × 1024, 1280 × 720, 1920 × 1080, 3840 × 2160(HDMI only) |
| Split screen | 1,4,6,8,9,13,16,25,32 |
| Main IPC | |
| CODEC | H.264 |
| Resolution (Pixel) / fps | main: upto 8MP @ 30 dual: upto 960 × 540 |
| Total Bitrate | 120Mbps |
| Channel Bitrate | 3.85 Mbps |
| Playback | |
| Display | 1,4,6,8,9,13,16,25,32 |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail |
| Fast/Slow speed | Normal, REW & FF [recorded speed × 2, × 4, × 8, × 16,x32,x64,x1/2,x1/4], Frame to frame, Pause |
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive |
| Network Interface | Gigabit Ethernet |
| The number of HDD | 8 SATA + 1 eSATA(upto 8 bays, No capacity limit ; 6TB or more) |
| Others | |
| Power Consumption | 280W (SMPS) |
| Operating Temperature | 5 ~ 40°C(41 ~ 104F) |
| Relative Humidity | Maximum 80% non-condensing |
| Dimension | 430(W) × 420(D) × 88(H) |
Additional information
| Dimensions | 420 × 430 × 88 mm |
|---|
