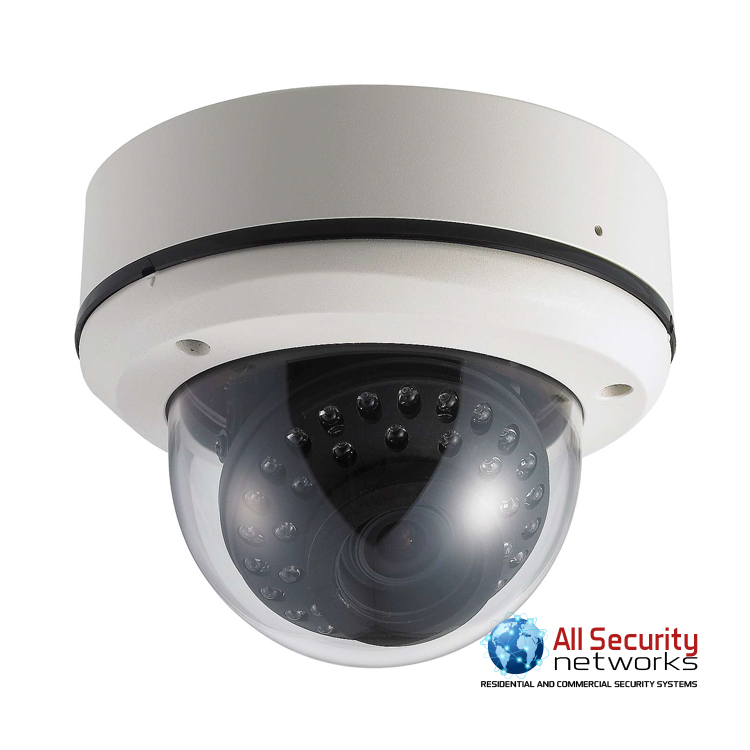

STORM® 700TVL(960H) IR Dome Camera w/ Auto-Iris VF Lens

Overview

High-Res 700 TV Line

The camera is powered by Sony Effio-E chipset that is embodied the top grade of the world at 700 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector.

2D DNR (2D DIGITAL NOISE REDUCTION)

Reduces the image noise in order to improve the image quality of the camera, in particular, it reduces the noise which is generated under low-brightness shooting conditions and other high-gain states.

ATR : Adaptive Tone Reproduction

ATR improves the visibility of the entire picture by providing the optimum gradation compensation.

HLC : High light Compensation

Improves the visual recognition of license plates and other such objects by suppressing of masking strong light sources (such as the headlights of automobiles) in dark places.

OSD CAMERA SETUP

It has have a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera.

3-AXIS DOME CONSTRUCTION

Accompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need

FEATURES

• IP-68 Water & Vandal-proof
• Easy Twist and Lock Installation : No drilling thru camera required (Drill hole guide included)
• 3-Axis Construction : By adjusting ‘3-Axis’ control, you get a straight view regardless whether camera is installed on a wall or ceiling
• SMART IR : wide spreading 35 IR LED preventing white out at the center of image.
• 1/3″ Sony Super EXVIEW HAD II color CCD sensor
• High Resolution – 700 (H) TV Line in Color
• Minimum Illumination – 0.1 Lux (Color) / 0 Lux with IR on(B/W)
• 2.8 ~ 12mm Auto-Iris Lens Installed
• OSD (On Screen Display) – Easy camera setup
• 2DDNR (2D Digital Noise Reduction) – less noise clear image quality at night
• ATR : Adaptive Tone Reproduction
• HLC : High light compensation
• DC 12V only
